APPLICATION:

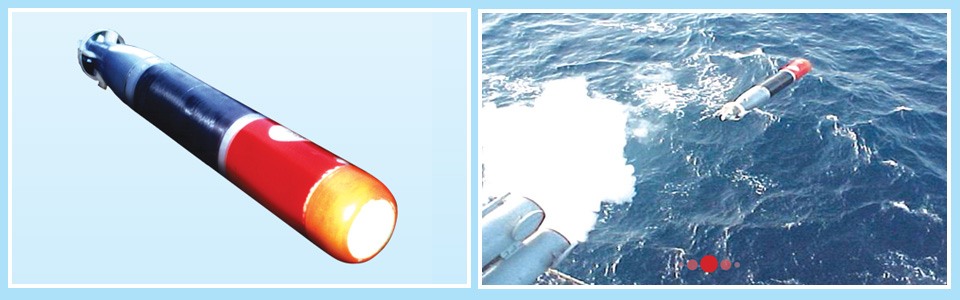

LIGHT WEIGHT TORPEDO is a state-of - art underwater weapon which can be launched from a ship and/or a Helicopter.

FEATURES

•     Length                   :            2752 mm

•     Weight                   :            197.5 kg (exercise version) 220 kg (warshot version)

•     Diameter               :            324 mm

•     Displacement         :           190.7 kg

•     Explosive weight   :            40 kg

Tactical characteristics: -

•     Role                      :   Anti-submarine

•     Launch platform   : Ship / helicopter / fixed wing aircraft

•     Speed                    : 33 knots(max)

•     Endurance             :    6 min

•     Depth of operation : 10 mtrs (min) 450 mtrs (max)

•     Propulsion             :    Electrical
