Exports

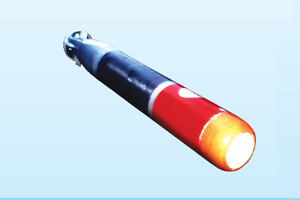

TAL (Torpedo Advanced Lightweight)

APPLICATION:

LIGHT WEIGHT TORPEDO is a state-of - art underwater weapon which can be launched from a ship and/or a Helicopter.

FEATURES

• Length : 2752 mm

• Weight : 197.5 kg (exercise version) 220 kg (warshot version)

• Diameter : 324 mm

• Displacement : 190.7 kg

• Explosive weight : 40 kg

Tactical characteristics: -

• Role : Anti-submarine

• Launch platform : Ship / helicopter / fixed wing aircraft

• Speed : 33 knots(max)

• Endurance : 6 min

• Depth of operation : 10 mtrs (min) 450 mtrs (max)

• Propulsion : Electrical

Explore

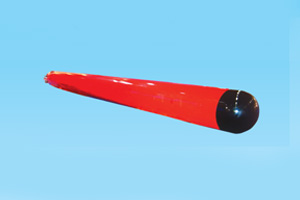

VARUNASTRA OR HEAVY WEIGHT TORPEDO

APPLICATION:

VARUNASTRA is an advanced state-of-the-art, ship launched heavy weight, anti-submarine Torpedo capable of targeting submarines operating in shallow / deep waters.

FEATURES:

• Length : 7.780 m

• Diameter : 533.4 mm

• Speed : 27 & 40 knots

• Operating depth : 8 to 600 m

• Propulsion : contrarotating propellers

• Weight of the torpedo : 1605 ± 10 kgs (exercise version)

: 1850 ± 10 kgs (combat version)

• Long range with multi maneuvering capabilities.

• Acoustic homing with wide look angle capable of tracking silent targets.

• ACCM features and multiple signal tracking system.

• Autonomous advanced guidance algorithms.

• Low drift navigational systems over long endurance.

Explore

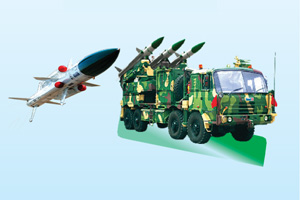

AKASH WEAPON SYSTEM

APPLICATION:

AKASH is a Short Range Surface to Air Missile System to protect vulnerable areas and points from air attacks. Akash Weapon System (AWS) can simultaneously engage Multiple Targets in Group Mode or Autonomous Mode. It has built-in Electronic Counter-Counter Measures (ECCM) features. The entire weapon system has been configured on mobile platforms.

FEATURES:

Range of Operation : 4.5 km to 25 km
Altitude of Operation : 100 m up to 20 km
Length : 5870 mm
Diameter : 350 mm
Weight : 710 kg
Guidance System : Command Guidance
Target types: Helicopters, Fighter aircrafts, UAVs etc.
Fully automatic with quick response time from target detection to kill.
Open system architecture ensures adaptability to existing and futuristic Air Defence environments.
High immunity against active and passive jamming.
Secured mode of communication between combat elements.
Self-sufficient in electrical power with in-built power sources.
Road and rail transportable with quick mobilization and deployment capabilities.
In-built safety features with IFF.

Explore

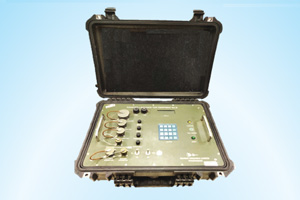

KONKURS MiSSiLE TEST EQUiPMENT (KMTE)

APPLICATION:

Konkurs Missile Test Equipment (KMTE) Ver. II is test equipment to check the serviceability of Konkurs-M ATGMs.

FEATURES

• KMTE Ver. II consists of KMTE Base Equipment and, cables.

• Man-portable.

• Ruggedized to be used in Extreme conditions (– 40°C to + 50°C).

• Leak Proof and dust proof.

• Battery operated.

• Used for Field and Workshop level maintenance of Konkurs-M Missile.

• Length : 470 mm max.

• Width : 358 mm max.

• Height : 176 mm max.

• Weight : 14 kg approx.

Explore

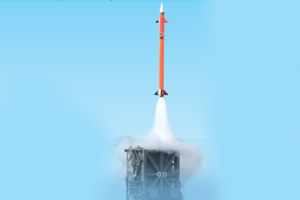

MEDIUM RANGE SURFACE - TO - AIR MISSILE (MRSAM)

APPLICATION:

MEDIUM RANGE SURFACE TO AIR MISSILE(MRSAM)

is a high response, quick reaction, vertically launched supersonic missile, designed to neutralize enemy aerial threats – missiles, aircraft, guided bombs, helicopters. Used by Army, Navy and Air Force as different variants.

FEATURES:

Range : 70 km
Guidance : Dual (Command & Active Radar Seeker (RF))
Control : TVC & Aerodynamic
Propulsion : Dual Pulse – Solid Motor
Warhead : Pre-fragment
Fuse : Proximity (RPF)
Flight time : 230 sec
Length : 4500 mm
Diameter : 225 mm
Weight : 275 kg
Launcher : Ship/ Vehicle (Vertical)Launch

Explore

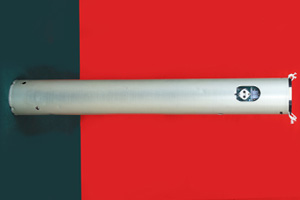

Dishani

APPLICATION:

DISHANI is a directional Sonobuoy and an expendable air-deployed ASW sensor system in a compact, self-contained package comprising of acoustic sensors, electronics, and mechanical assemblies and parachute.It is meant to be dropped from an aircraft (fixed / rotary wing) and after entering the water separate into an underwater unit and a surface radio transmitter which then relay the acoustic signals to the aircraft.A directional sonobuoy system consists of a wet end comprising of the sonobuoy and an onboard system comprising of RF transceiver capable of receiving the sensor data, signal processing subsystem & HMI unit for displaying the resultant information.

FEATURES:

• Deployment platform - Helicopter / Fixed Wing Aircraft

• Sonobuoy dimensions - Standard NATO size 'A’

• Launch altitude - 50-1000 m (for helicopter), 100 – 8000 m (for fixed wing aircraft)

• Launch speed - 0-150 Knots (Helicopter lAS) 150 – 370 Knots (Fixed wing IAS)

• Acoustic Sensor Selections - Shallow Omni Hydrophone (15m), Deep Omni Hydrophone (up to 300 m) or Directional Sensor (up to 300 m)

• Operating depth - Preset selectable four depth settings (30m, 60m, 120m, 300m)

• Operating life - Selectable (0.5, 1, 2, 4, 8) hours

• Electronic Feature Select (EFS) - Operating Depth, RF Channel, Operating Life, Acoustic Sensor, Pre amplifier Gain, Scuttle

• Command Feature Select (CFS) - RF Channel, Operating Life, Acoustic Sensor, Pre amplifier Gain, Scuttle

• Command Feature Select (CFS) - UHF – single channel at 291.4 MHz

• Sonobuoy Selection - Individual addressing (24 bit)

• Sonobuoy Data telemetry band - VHF (136.000 to 173.500 MHz) 100 channels selectable

• Sonobuoy Location Information - Equipped with GPS for own location / reconfigurable to NAVIC in future

• Weight - 9 Kg Approx.

• Shelf Life - 5 years in sealed container

Explore

QUICK REACTION SURFACE -TO- AIR MISSILE (Q R SAM)

APPLICATION:

QUICK REACTION SURFACE TO AIR MISSILE (QRSAM) is a quick reaction Surface to Air Missile capable of Search on Move, Track on Move and Fire on Short halts.
