APPLICATION:

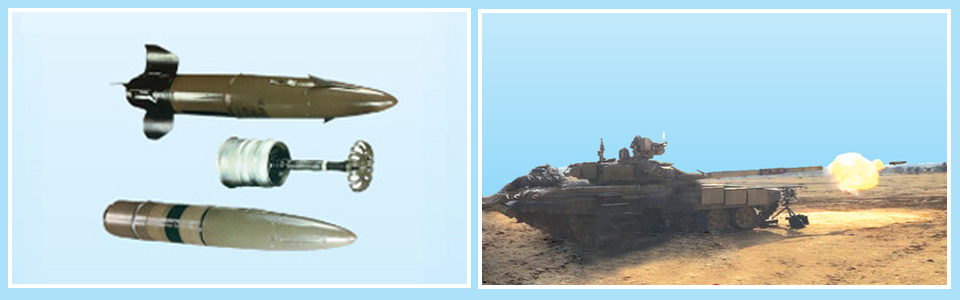

INVAR (3 UBK 20 ) ATGM is a mechanized infantry weapon fired from the gun barrel of T90 tank to destroy armoured vehicles equipped with Explosive Reactive Armour.

FEATURES:

• The missile is of semi-automatic control system, laser beam riding and jamming immune

• Equipped with tandem warhead.

• Can destroy stationary and moving target with speed up to 70 kmph

• Has a high hit and kill probability.

• Length                        :           695 mm (missile)

                                                      395 mm (throwing device)

•  Caliber                       :           125 mm

•  Range                         :           5000 m

• Flight time                  :           17.6 sec

• Armour penetration    :           700 mm (behind ERA)

• Weight                        :           17.2kg(missile)

                                                          7.1kg (throwing device)
