C 303S Anti-Torpedo Decoy Launching System
Application:
C – 303S Anti-Torpedo Decoy Launching System is meant to counter the threat posed by any active and/or passive homing Torpedo.
Features:
Effectors :
- Jammer is an underwater broadband noise generator. It masks the target to the attacking torpedo.
- Mobile Target Emulators (MTE) is a self-propelled countermeasure able to emulate the acoustic and dynamic behaviour of a real submarine. It simulates a target through the generation of echoes based on the acoustic emission of the attacking torpedo.

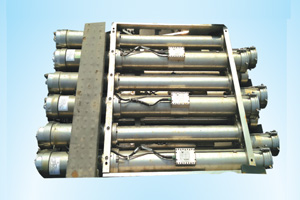

5” Launcher:
Mechanical Features:
- Length : 1907mm
- Height/Width : 163mm/163mm
- Weight : 79 Kg (approx.)
Mobile Target Emulator:
- Length : 1149 mm
- Diameter : 123.8 mm
- Weight : 23 Kg (approx.)
Pneumatic Features:
- Minimum firing Depth : 20 Mtrs
- Operating pressure : 250 bar
- Maximum firing Depth : 400 Mtrs
- Max charge rate : 30 bar/min
- Storage Life : >20 Years without battery
Electrical Features:
- Operative Temperature : -2 to +35 °C
Environmental Characteristics:
- Operative temperature : -2 to +35 °C
