APPLICATION:

C – 303S Anti-Torpedo Decoy Launching System is meant to counter the threat posed by any active and/or passive homing Torpedo.

FEATURES

EFFECTORS :

• Jammer is an underwater broadband noise generator. It masks the target to the attacking torpedo.

• Mobile Target Emulators (MTE) is a self-propelled countermeasure able to emulate the acoustic and dynamic behaviour of a real submarine. It simulates a target through the generation of echoes based on the acoustic emission of the attacking torpedo.

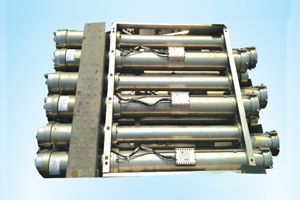

5” LAUNCHER:                                                                                                  MOBILE TARGET EMULATOR:

MECHANICAL FEATURES

Length :           1907mm                                                                                       Length             :            1149 mm

Height/Width   :           163mm/163mm                                                                Diameter        :            123.8 mm

Weight :                       79 Kg (approx.)                                                                Weight            :            23 Kg (approx.)

PNEUMATIC FEATURES                                                                                     Minimum firing Depth : 20 Mtrs

Operating pressure                   :       250 bar                                                        Maximum firing Depth : 400 Mtrs

Max charge rate           :           30 bar/min                                                            Storage Life     : >20 Years without battery

ELECTRICAL FEATURES  :           28Vdc                                                             Operative Temperature : -2 to +35 °C

ENVIRONMENTAL CHARACTERISTICS

Operative temperature   :      -2 to +35 °C
