APPLICATION:

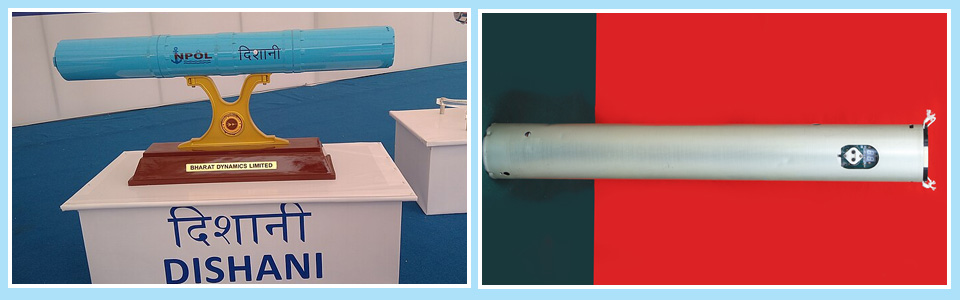

DISHANI is a directional Sonobuoy and an expendable air-deployed ASW sensor system in a compact, self-contained package comprising of acoustic sensors, electronics, and mechanical assemblies and parachute.It is meant to be dropped from an aircraft (fixed / rotary wing) and after entering the water separate into an underwater unit and a surface radio transmitter which then relay the acoustic signals to the aircraft.A directional sonobuoy system consists of a wet end comprising of the sonobuoy and an onboard system comprising of RF transceiver capable of receiving the sensor data, signal processing subsystem & HMI unit for displaying the resultant information.

FEATURES:

•     Deployment platform - Helicopter / Fixed Wing Aircraft

•     Sonobuoy dimensions - Standard NATO size 'A’

•     Launch altitude - 50-1000 m (for helicopter), 100 – 8000 m (for fixed wing aircraft)

•     Launch speed - 0-150 Knots (Helicopter lAS) 150 – 370 Knots (Fixed wing IAS)

•     Acoustic Sensor Selections - Shallow Omni Hydrophone (15m), Deep Omni Hydrophone (up to 300 m) or Directional Sensor (up to 300 m)

•     Operating depth - Preset selectable four depth settings (30m, 60m, 120m, 300m)

•     Operating life - Selectable (0.5, 1, 2, 4, 8) hours

•     Electronic Feature Select (EFS) - Operating Depth, RF Channel, Operating Life, Acoustic Sensor, Pre amplifier Gain, Scuttle

•     Command Feature Select (CFS) - RF Channel, Operating Life, Acoustic Sensor, Pre amplifier Gain, Scuttle

•     Command Feature Select (CFS) - UHF – single channel at 291.4 MHz

•     Sonobuoy Selection - Individual addressing (24 bit)

•     Sonobuoy Data telemetry band - VHF (136.000 to 173.500 MHz) 100 channels selectable

•     Sonobuoy Location Information - Equipped with GPS for own location / reconfigurable to NAVIC in future

•     Weight - 9 Kg Approx.

•     Shelf Life - 5 years in sealed container
